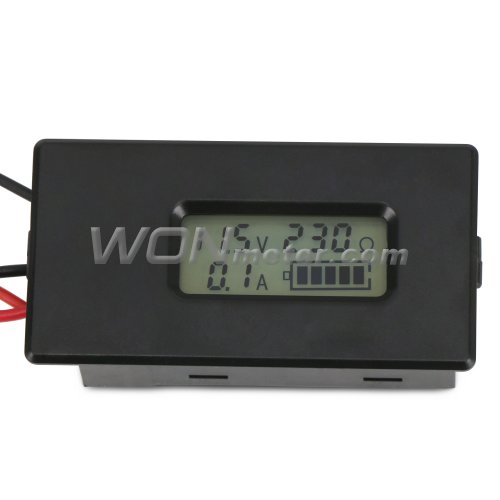

Digital Meter 4in1 Voltage/Current/Resistance/Capacity Monitor 2.8~26.0V/10A/1000 Ohm Lcd Multifunction Battery Tester

Parameters:

• Power: battery >2.8V
• Working Temperature: -10° c ~ +40° c
• 1. Battery Voltage Measurement

  • Measuring Voltage Range: 2.8~26.0V
  • Resolution: 0.1V.
  • Accuracy: 2%.
• 2. Battery Capacity Measurement
  • Battery capacity is displayed in from of grid on the LCD display, a total of five grids, and battery capacity is distinguished by the battery voltage.
  • Displaying 5 grids stands for full capacity,4 grids for 4/5 capacity,3 grids for 3/5 capacity,2 grids for 2/5 capacity,1 grid for 1/5 capacity,0 grid for 0/5 capacity.
  • Battery cut-off voltage can be set within 2.8 ~ 26.0V, but can not exceed the full-scale voltage.
  • Battery full-scale voltage can be set within 2.8V ~ 26.0V, but can not be less than the cut-off voltage.
• 3. Load Current Measurement

  • Measuring Current Range:0.0~10.0A
  • Resolution:0.1A
  • Accuracy:2%
• 4. Load Resistance Measurement
  • The load resistance is got through dividing battery voltage by load current.
  • Measuring Resistance Range: 0~999Ω,when over 999Ω display "OL"
  • Resolution: when less than 10Ω,resolution is 0.01Ω;
  • when within 10Ω~100Ω, resolution is 0.1Ω;
  • when within 100Ω~1000Ω,resolution is 1Ω.
  • Accuracy:2%
• 5. Backlight
  • Default off-backlight, you can turn on/off the backlight by button.

Package included:

• 1 x Lithium Battery Tester (Multifunction Digital Meter)
