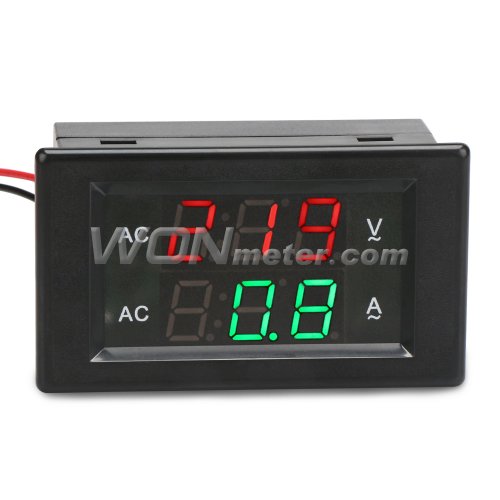

Digital Meter AC130~500V/200A Led Dual Display Voltmeter Ammeter AC 220V 380V Digital Volt Ampere Meter 2in1 Tester + Current Transformer

  • Item ID #200069
Qty.:

List Price: $10.90 Our Price: $10.20Save 6%

Price(per unit)
1-4
$10.20		 5-9
$9.69		 10-19
$9.18		 20-29
$8.67		 30+
$8.16
Buy More: please contact us

It is a  Digital Volt Ampere Meter/2in1 Digital Tester, Voltage measuring range: AC130~500V, Current measurement range: AC0.0~200.0A, Measurement accuracy: 1% + 2 digits, Applications:The meter can be used in charger, inverter, solar energy, wind turbines, LED lights measurement, distribution box, voltage regulator,education appliances, appliance Repair, flapper, etc.


Other Products in AC Voltmeter

page 1 of 2 Previous Page Next Page
Description:
  • Green terminal must be connected to its own CT or it will be broken.
  • Display voltage and current on the same sreen with different color.(red for voltage, green for current)
  • Very easy to connect, red and black wires both connect with power supply.
  • Adjustable voltage and current error with potentiometer and saft with its back cover.
Note:
  • Must be first connected the circuit of the current loop and finnaly the 220V voltage. Do not touch any parts or circuit behide the ammeter after connecting with 220V voltage.
  • Do not suitable for high frequency electronic speed control, non city electric sine wave frequency or other occasions with high frequency components under the theroy of Step-down capacitor.
Parameters:
  • Voltage measuring range: AC130~500V
  • Current measurement range: AC0.0~200.0A
  • Resolution: 1V 1A
  • CT inner hole: 24mm
  • Measurement accuracy: 1% + 2 digits
  • Display: 0.39 inch LED digital tube display
  • Measuring speed: about twice per second
  • Exterior dimension: 70 x 40 x 30 mm
  • Installation dimension: 68 x 38mm
  • The power supply line, measuring length: about 150mm
  • Split type transformer lead length: about 100mm
  • Operating temperature: -10°c ~ +50°c
  • Working humidity: 10 ~ 80% (no condensation)
  • Working pressure: 80 ~ 106kPa
  • Sun exposure: no direct exposure
Package includes:
  • 1 x Digital Volt Ampere Meter (2in1 Digital Meter) + Current Transformer (CT)
